Strut And Track Roll Forming Machine Servo Hydraulic Punching And Cutting C U Channel Roll Forming Machine
Product Descriptions
Normally speaking for the C purlin machine, we only use the common thickness from 1.5 to 3.0mm. But some time we do need the thickness from 3 to 5.0mm, based on the need, Dingbo’s cold rolling forming machinery designs machine for this type C purlin making.
Meanwhile as to the rolling forming machine of C purlin the speed of 25 meter is normal, but for some developing countries, the worker salary is very high, then the high speed C purlin machine will be good for them like the machine here, we can share the some more information of it.
Version to design

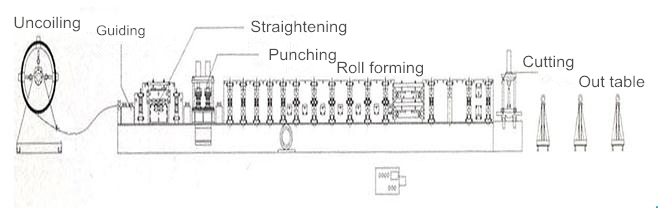

Working Flow
Decoiler -- Feeding -- Straighten -- Punching --Roll forming -- Shear -- Output
Product Parameters
| Model Number | DBRF |
| Condition | New |
| Production Capacity | 10-15m/min |
| Forming Speed | Max 12m/min |
| Weight | 5-15T |
| Thickness | 0.3-0.8mm |
| Roller Stations Hgf | 7-15stations rkujmjkuik75k8uk5476i765k8 |
| Roller Material | 45#steel |
| Cutting blade material | Cr 12mould steel |
| Material of shaft | 45#steel |
| Diameter of shaft | 65-95mm |
| Motor Power | 4-7.5kw(Depend on final design) |
| Hydraulic Power | 3kw(Depend on final design) |
| Voltage | 380V 50Hz 3Phases |
| Length Tolerance | +-1.5 |
| Drive Way | Chain transmission |
| Chain Size | 0.6-2inch |
Main Components
| 3 ton de-coiler | 1 set |
| Main roll forming machine | 1 set |
| Punching device | 1 set |
| Cutting device | 2 sets |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Output table | 2 units |
| Safety cover | 1 unit(Optional) |
Application pictures
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
